Case Hardening Steel Product Showcase
Browse low carbon alloy steels designed for high surface wear resistance and excellent core toughness.
Steel Grades: EN353, 8620, 20MnCr5 & 16MnCr5
Review key chemical compositions and mechanical properties for featured case hardening grades.

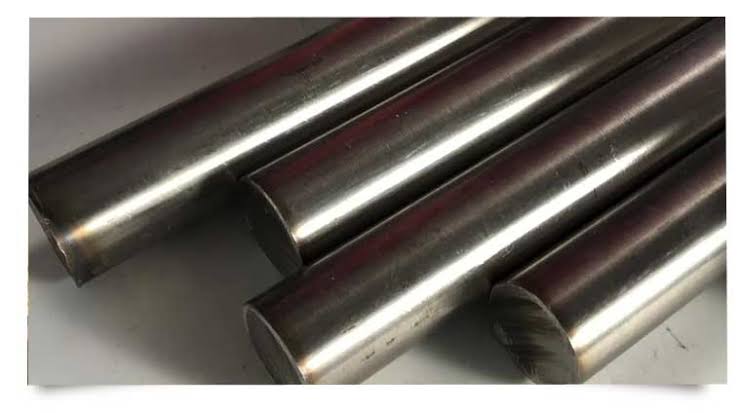

EN353 GRADE STEEL
Ni-Cr-Mo Case Hardening Steel
EN353 Alloy Steel
A nickel-chromium-molybdenum alloy steel offering high surface hardness, fatigue strength, and core strength.
8620 GRADE STEEL
AISI / SAE 8620
8620 Case Hardening Steel
A nickel-chromium-moly low-carbon alloy steel with high core toughness, ductility, and uniform hard case depth.

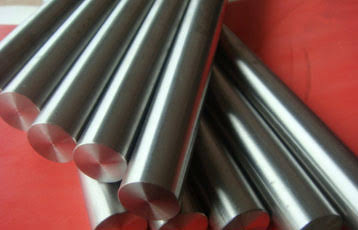

20MNCR5 GRADE
DIN 1.7147 / 20MnCr5
20MnCr5 Case Hardening Steel
A widely used chromium-manganese steel offering optimal combination of high wear resistance and high core toughness.

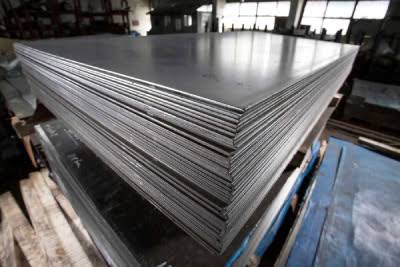

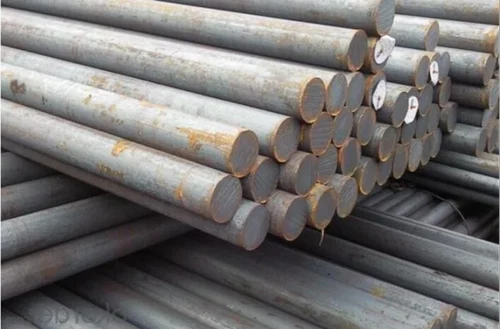

16MNCR5 GRADE
DIN 1.7131 / 16MnCr5
16MnCr5 Case Hardening Steel
A chromium-manganese alloy steel designed for good machinability, high core toughness, and surface wear resistance.
Area of Applications
Case hardening steel grades (EN353, 8620, 20MnCr5, 16MnCr5) excel in high-friction automotive and drive components.
EN353 / 20MnCr5Gears
Spur, helical, and bevel gears operating under extreme surface contact pressure and shock loads.

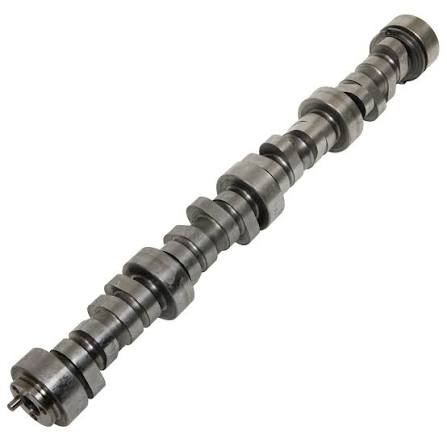

EN353 / 8620Camshafts
Precision automotive camshaft lobes requiring friction endurance and high surface wear protection.

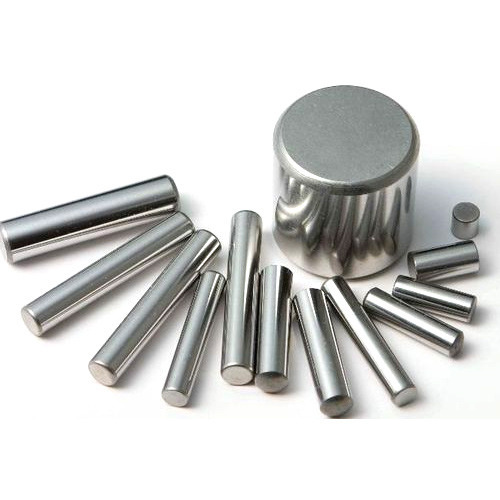

8620 / 16MnCr5Pins & Bearings
Gudgeon pins, king pins, and bearing rollers with hard wear-resistant outer casing.
20MnCr5 / 16MnCr5Automotive & Gear Shafts
Engine gear shafts and heavy-duty automotive drivetrain components.

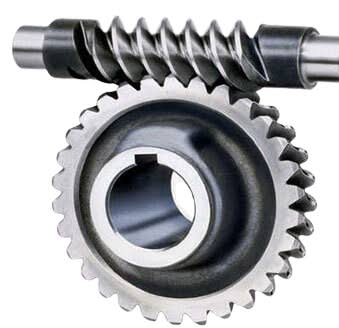

8620 / EN353Crankshafts, Worm Gears & Pinions
High-torque crankshafts, precision worm gears, and drive pinions.
20MnCr5 / EN353Transmission Shafts
Power transmission shafts providing smooth torque delivery without torsional deformation.
20MnCr5 / 16MnCr5Drive Components
Heavy machinery drive hubs, couplings, and power train linkages.
16MnCr5 / 8620Clutch Components & Precision Parts
Clutch hubs, pressure plates, and high-precision machinery components.
Technical Data
Chemical composition and mechanical properties for Case Hardening Steel (EN353, 8620, 20MnCr5 & 16MnCr5).
| Element | Composition range |
|---|---|
| Carbon (C) | 0.14–0.20% |
| Manganese (Mn) | 0.60–1.00% |
| Chromium (Cr) | 0.75–1.25% |
| Nickel (Ni) | 1.00–1.50% |
| Molybdenum (Mo) | 0.08–0.15% |
| Element | Composition range |
|---|---|
| Carbon (C) | 0.18–0.23% |
| Chromium (Cr) | 0.40–0.60% |
| Nickel (Ni) | 0.40–0.70% |
| Molybdenum (Mo) | 0.15–0.25% |
| Element | Composition range |
|---|---|
| Carbon (C) | 0.17–0.22% |
| Manganese (Mn) | 1.10–1.40% |
| Chromium (Cr) | 1.00–1.30% |
| Element | Composition range |
|---|---|
| Carbon (C) | 0.14–0.19% |
| Manganese (Mn) | 1.00–1.30% |
| Chromium (Cr) | 0.80–1.10% |
| Property | Value |
|---|---|
| Core Tensile Strength | 700–900 MPa |
| Surface Hardness | 60–62 HRC |
| Property | Value |
|---|---|
| Core Tensile Strength | 650–850 MPa |
| Surface Hardness | 58–62 HRC |
| Property | Value |
|---|---|
| Core Tensile Strength | 650–900 MPa |
| Surface Hardness | 58–62 HRC |
| Core Toughness | High |
Note: Values shown are reference ranges for presentation purposes and may vary by standard, supplier, product form and heat treatment. Confirm material certificates and applicable standards before purchase or production use.
Looking for the Right Case Hardening Steel Grade?
Review the material data and match the grade to your gears, shafts, pinions, and automotive components.
