Spring Steel
Spring Steel Product Showcase
Browse high-performance spring steel options suited for high elasticity, suspension, and heavy-duty applications.
Steel Grades: EN42 & EN47
Review key chemical compositions and mechanical properties for featured spring steel grades.

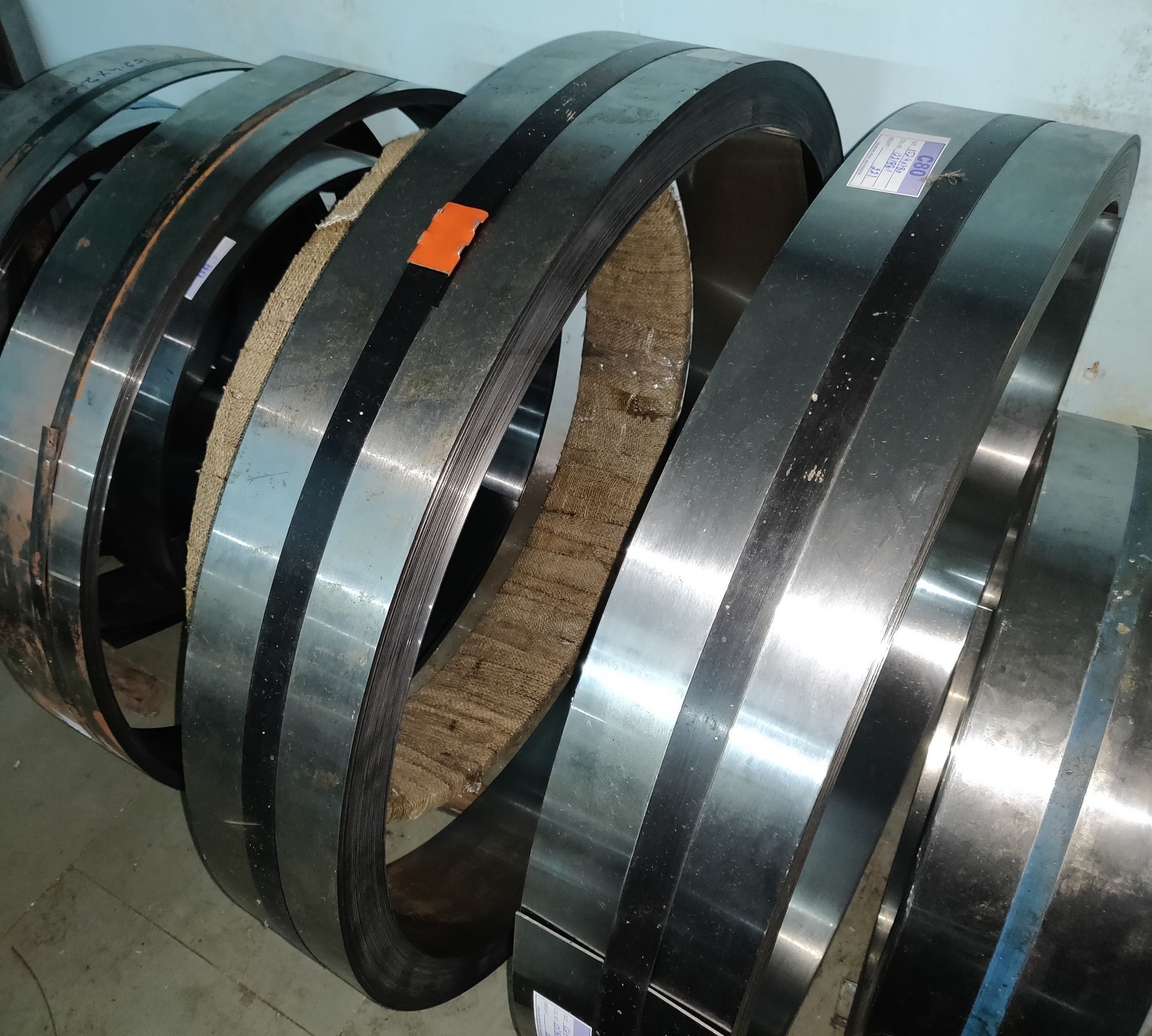

EN42 GRADE STEEL
Spring Steel EN42
EN42 High Elasticity Spring Steel
A carbon spring steel providing high tensile strength and elasticity for flat and coil springs.
EN47 GRADE STEEL
Spring Steel EN47
EN47 High Fatigue Resistance Spring Steel
A chromium-vanadium silicon spring steel offering excellent fatigue endurance and toughness under heavy loading.
Area of Applications
Spring steel grades (EN42 & EN47) are used in high-stress, cyclical loading, and vehicle suspension components.
EN47Leaf Springs
Heavy vehicle leaf springs designed for high load capacity and repeated flexing endurance.

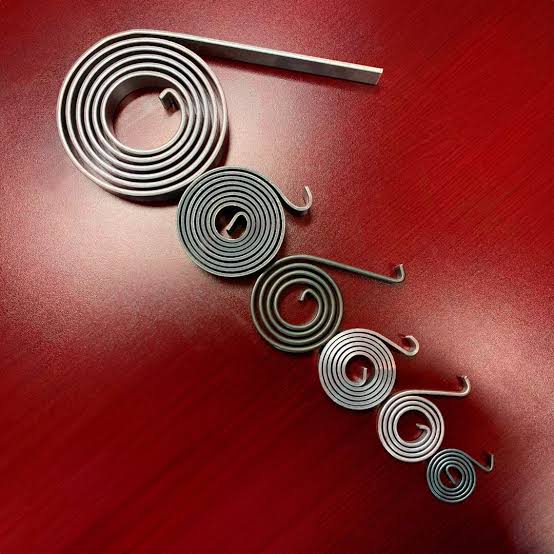

EN42Flat Springs
Precision flat spring components requiring high elasticity and dimensional recovery.

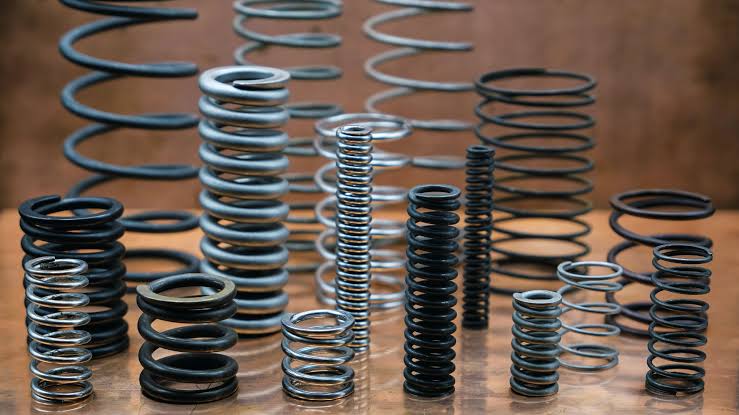

EN42 / EN47Coil Springs
Helical compression and tension springs operating under continuous mechanical strain.

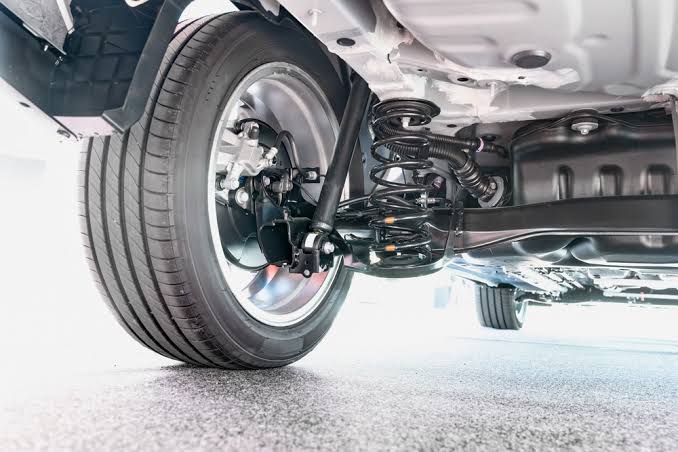

EN47Vehicle Suspension
Automotive suspension systems ensuring shock absorption and ride stability.

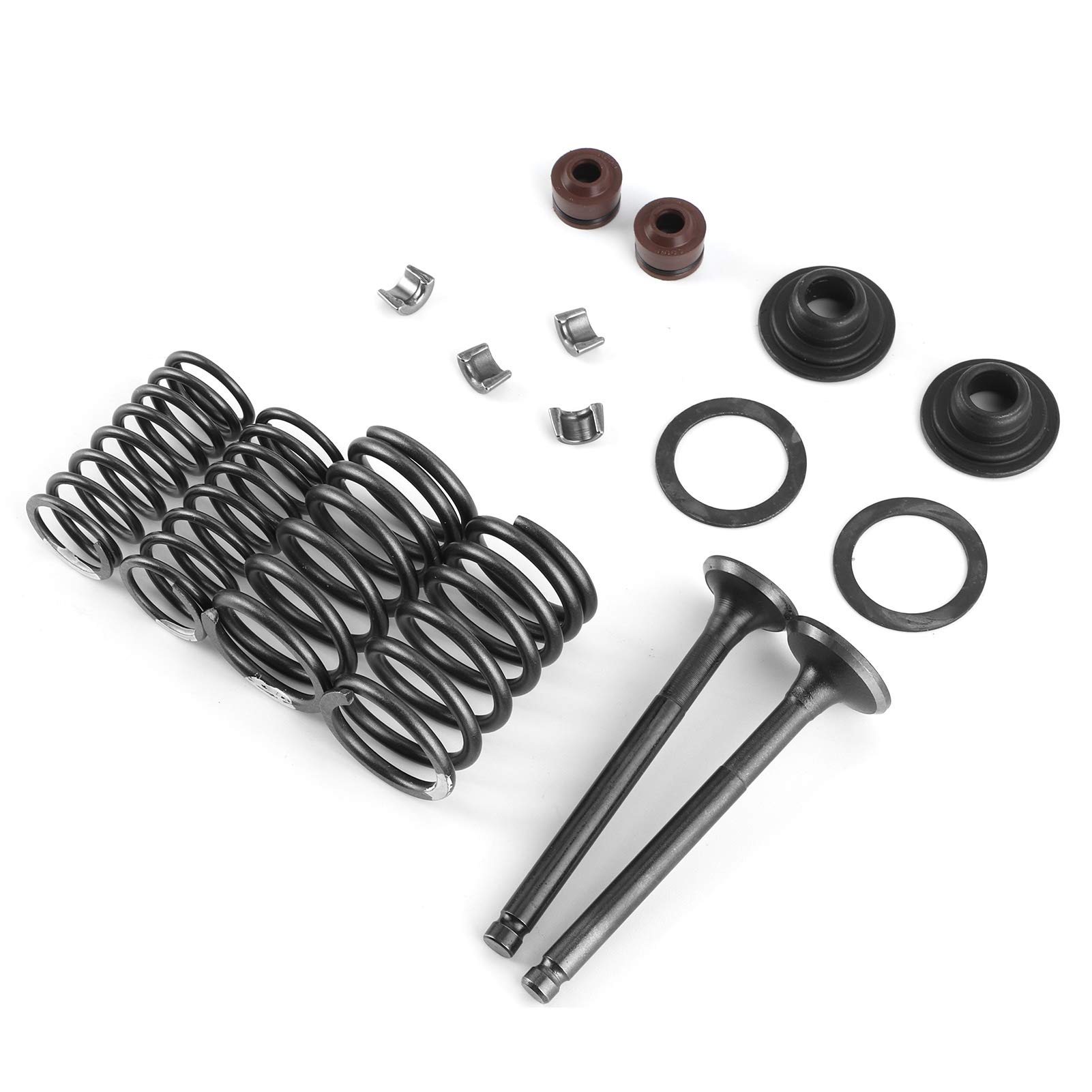

EN42 / EN47Valve Springs
Engine valve springs maintaining integrity under high-frequency thermal and mechanical cycles.
EN47Torsion Bars
High-torque suspension torsion bars designed for energy storage and spring back.
EN47Heavy-Duty Springs
Industrial heavy machinery springs built to withstand extreme dynamic loads.

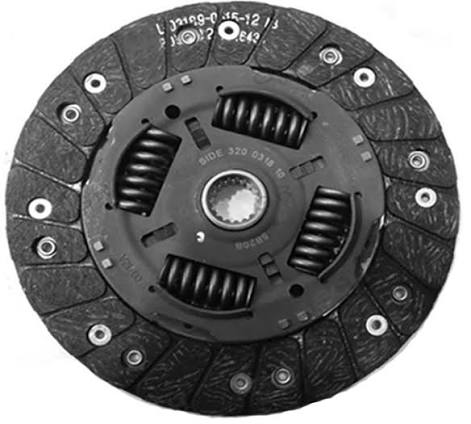

EN42Clutch Springs
Automotive clutch plate springs providing reliable torque transfer and pressure engagement.
Technical Data
Chemical composition and mechanical properties for Spring Steel (EN42 & EN47).
| Element | Composition range |
|---|---|
| Carbon (C) | 0.65–0.75% |
| Manganese (Mn) | 0.60–0.90% |
| Silicon (Si) | 0.10–0.35% |
| Chromium (Cr) | 0.20–0.40% |
| Element | Composition range |
|---|---|
| Carbon (C) | 0.45–0.55% |
| Silicon (Si) | 1.50–2.00% |
| Chromium (Cr) | 0.80–1.20% |
| Manganese (Mn) | 0.50–0.80% |
| Property | Value |
|---|---|
| Tensile Strength | 1000–1200 MPa |
| Elongation | 10% |
| Elasticity | High |
| Property | Value |
|---|---|
| Tensile Strength | 900–1100 MPa |
| Hardness | 250–300 HB |
| Fatigue Resistance | Excellent |
Note: Values shown are reference ranges for presentation purposes and may vary by standard, supplier, product form and heat treatment. Confirm material certificates and applicable standards before purchase or production use.
Looking for the Right Spring Steel Grade?
Review the material data and match the grade to your spring, suspension, and high-stress component requirements.
